Display current location marker on OpenStreetMap

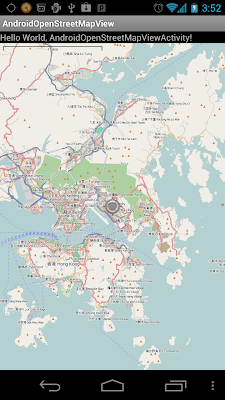

Further works on last exercise "Add Scale Bar on OpenStreetMap", add a marker on OpenStreetMap, to indicate the current location.

Copy your marker drawing in the folder /res/drawable/. You can find number of Android icons in installed SDK directory: /android-sdks/platforms/<android version>/data/res/

overlayItemArray is a array of OverlayItem, it have none or ONE item of current location only.

To add overlay on OpenStreetMapView, we have to create custom MyItemizedIconOverlay class extends from MyItemizedIconOverlay. Then add the MyItemizedIconOverlay object (myItemizedIconOverlay) to the MapView overlay. Refer to the code below the comment "//--- Create Overlay".

To update the item(s) in overlayItemArray, simple use methods of clear(), add()...etc. Refer to the method setOverlayLoc(Location overlayloc).

In the custom ItemizedIconOverlay class, MyItemizedIconOverlay; I override onSingleTapUp() method to return true always - Because the app will FORCE CLOSE without it! (I don't know why at this moment)

Modify AndroidOpenStreetMapViewActivity.java. Other files refer to previous exercises.

package com.exercise.OpenStreetMapView;

import java.util.ArrayList;
import java.util.List;

import org.osmdroid.DefaultResourceProxyImpl;
import org.osmdroid.ResourceProxy;
import org.osmdroid.util.GeoPoint;
import org.osmdroid.views.MapController;
import org.osmdroid.views.MapView;
import org.osmdroid.views.overlay.ItemizedIconOverlay;
import org.osmdroid.views.overlay.OverlayItem;
import org.osmdroid.views.overlay.ScaleBarOverlay;

import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Point;
import android.location.Location;
import android.location.LocationListener;
import android.location.LocationManager;
import android.os.Bundle;
import android.view.MotionEvent;

public class AndroidOpenStreetMapViewActivity extends Activity {

private MapView myOpenMapView;
private MapController myMapController;

LocationManager locationManager;

ArrayList<OverlayItem> overlayItemArray;

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);

myOpenMapView = (MapView)findViewById(R.id.openmapview);
myOpenMapView.setBuiltInZoomControls(true);
myMapController = myOpenMapView.getController();
myMapController.setZoom(12);


//--- Create Overlay
overlayItemArray = new ArrayList<OverlayItem>();

DefaultResourceProxyImpl defaultResourceProxyImpl
= new DefaultResourceProxyImpl(this);
MyItemizedIconOverlay myItemizedIconOverlay
= new MyItemizedIconOverlay(
overlayItemArray, null, defaultResourceProxyImpl);
myOpenMapView.getOverlays().add(myItemizedIconOverlay);
//---


locationManager = (LocationManager)getSystemService(Context.LOCATION_SERVICE);

//for demo, getLastKnownLocation from GPS only, not from NETWORK
Location lastLocation
= locationManager.getLastKnownLocation(
LocationManager.GPS_PROVIDER);
if(lastLocation != null){
updateLoc(lastLocation);
}

//Add Scale Bar
ScaleBarOverlay myScaleBarOverlay = new ScaleBarOverlay(this);
myOpenMapView.getOverlays().add(myScaleBarOverlay);
}

@Override
protected void onResume() {
// TODO Auto-generated method stub
super.onResume();
locationManager.requestLocationUpdates(LocationManager.GPS_PROVIDER, 0, 0, myLocationListener);
locationManager.requestLocationUpdates(LocationManager.NETWORK_PROVIDER, 0, 0, myLocationListener);
}

@Override
protected void onPause() {
// TODO Auto-generated method stub
super.onPause();
locationManager.removeUpdates(myLocationListener);
}

private void updateLoc(Location loc){
GeoPoint locGeoPoint = new GeoPoint(loc.getLatitude(), loc.getLongitude());
myMapController.setCenter(locGeoPoint);

setOverlayLoc(loc);

myOpenMapView.invalidate();
}

private void setOverlayLoc(Location overlayloc){
GeoPoint overlocGeoPoint = new GeoPoint(overlayloc);
//---
overlayItemArray.clear();

OverlayItem newMyLocationItem = new OverlayItem(
"My Location", "My Location", overlocGeoPoint);
overlayItemArray.add(newMyLocationItem);
//---
}

private LocationListener myLocationListener
= new LocationListener(){

@Override
public void onLocationChanged(Location location) {
// TODO Auto-generated method stub
updateLoc(location);
}

@Override
public void onProviderDisabled(String provider) {
// TODO Auto-generated method stub

}

@Override
public void onProviderEnabled(String provider) {
// TODO Auto-generated method stub

}

@Override
public void onStatusChanged(String provider, int status, Bundle extras) {
// TODO Auto-generated method stub

}

};

private class MyItemizedIconOverlay extends ItemizedIconOverlay<OverlayItem>{

public MyItemizedIconOverlay(
List<OverlayItem> pList,
org.osmdroid.views.overlay.ItemizedIconOverlay.OnItemGestureListener<OverlayItem> pOnItemGestureListener,
ResourceProxy pResourceProxy) {
super(pList, pOnItemGestureListener, pResourceProxy);
// TODO Auto-generated constructor stub
}

@Override
public void draw(Canvas canvas, MapView mapview, boolean arg2) {
// TODO Auto-generated method stub
super.draw(canvas, mapview, arg2);

if(!overlayItemArray.isEmpty()){

//overlayItemArray have only ONE element only, so I hard code to get(0)
GeoPoint in = overlayItemArray.get(0).getPoint();

Point out = new Point();
mapview.getProjection().toPixels(in, out);

Bitmap bm = BitmapFactory.decodeResource(getResources(),
R.drawable.ic_menu_mylocation);
canvas.drawBitmap(bm,
out.x - bm.getWidth()/2,  //shift the bitmap center
out.y - bm.getHeight()/2,  //shift the bitmap center
null);
}
}

@Override
public boolean onSingleTapUp(MotionEvent event, MapView mapView) {
// TODO Auto-generated method stub
//return super.onSingleTapUp(event, mapView);
return true;
}
}
}

Download the files.
